1.Battery Charging
This is the recommended method of charging for Suneom batteries. It is necessary to closely control the actual voltage to ensure that it is within the limits advised.
> Float charge: charge voltage 2.275V/unit(at 20℃) ,below 0.002CA floating electric. when the temperature is below 0℃ or above 40℃,it is necessary to modify electric voltage which according with the starting point 20℃, unit voltage will change -3 mV/℃/cell.
> Cycle charge: electric voltage 2.4~2.5V/unit(at 20℃),When the temperature is below 5℃ or above 35℃ which according with the starting point 20℃ to change, unit voltage will change -4 mV/℃/cell.
>charge electric quality set at discharge’s 100~120%. When ambient temperature below 5℃, it should be set at 120~ 130%.

>the temperature should be within -15℃~+50℃ when battery charging, pay attention to the temperature should be within 5℃~30℃ when circle using.

    2. Battery discharging
.>the temperature should be within -15℃~+50℃ when battery discharging
>the continuous discharge current should be below 3CA. SH series battery’s should be below 6CA.

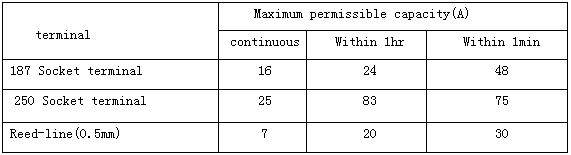

The affordable discharge current of different terminal are following:
